Performance Diagram
Compressed air cooled
Compressed air cooled
Performance Diagram
Spindle holder cooled
Spindle holder cooled
Dimensions

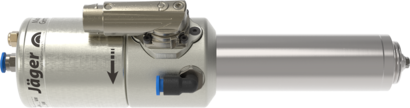

DentaDrive 100V-3 S21
Item no. 153FK023
Technical Specifications
| Hybrid ball bearing (pcs) | 3 |
| Lifetime lubricated | maintenance free |
| Motor technology |
3-phase asynchronous drive (no brushes or sensors) |
| Frequency | 1667 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 100,000 rpm |
| Rated Power (Pmax/5s) |
0.42 kW *
(0.75 kW **) |
| Rated Power (S6-60%) |
0.33 kW *
(0.65 kW **) |
| Rated Power (S1-100%) |
0.22 kW *
(0.51 kW **) |
| Voltage (Pmax/5s) |
36 V *
(71 V **) |
| Voltage (S6-60%) |
36 V *
(71 V **) |
| Voltage (S1-100%) |
36 V *
(66 V **) |
| Current (Pmax/5s) |
13.7 A *
(13.6 A **) |
| Current (S6-60%) |
9.6 A *
(11 A **) |
| Current (S1-100%) |
7.5 A *
(10.2 A **) |
| Housing | Stainless steel/aluminium |
| Housing diameter | 33 mm |
| Cooling | Compressed air cooled |
| Heat dissipation | Via the housing |
| Housing temperature | <+ 50° C |
| Ambient temperature | + 10°C … + 45°C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | Optional accessories |
| ESD Protection | Optional accessories |
| Tool Change | Pneumatic direct change |
| Collet type |
5,1P-5° Optionales Zubehör |
| Clamping range | 3.5 mm (1/8") |
| Direction of motion | Clockwise |
| Coupler plug | 9-pin (I-TEC) |
| Weight | 1.2 kg |
| Concentricity | <1 µ |
*) Compressed air cooled **) Spindle holder cooled
