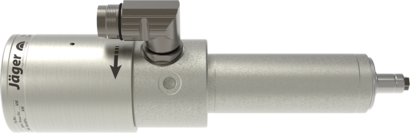

Z42-D160.02 S3XY
Item no. 10301103-01
Technical Specifications
| Hybrid ball bearing (pcs) | 2 |
| Lifetime lubricated | maintenance free |
| Motor technology |
3-phase asynchronous drive (no brushes or sensors) |
| Frequency | 1000 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 60,000 rpm |
| Rated Power (Pmax/5s) | 0.98 kW |
| Rated Power (S6-60%) | 0.63 kW |
| Rated Power (S1-100%) | 0.46 kW |
| Voltage (Pmax/5s) | 91 V |
| Voltage (S6-60%) | 100 V |
| Voltage (S1-100%) | 90 V |
| Current (Pmax/5s) | 9 A |
| Current (S6-60%) | 6.5 A |
| Current (S1-100%) | 5 A |
| Speed Sensor |
Differential magneto resistor (TTL) Number of signals = 6 |
| Housing | Aluminium |
| Housing diameter | 42 mm |
| Cooling | Uncooled |
| Heat dissipation | Via the spindle holder |
| Housing temperature | <+ 45° C |
| Ambient temperature | + 10°C … + 45°C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | yes |
| Tool Change | Pneumatic direct change |
| Collet type | 8/5° |
| Clamping range | 6 mm (1/4") |
| Direction of motion | Clockwise |
| Coupler plug | 8-pin metal |
| Weight | 2.2 kg |
| Concentricity | <1 µ |
